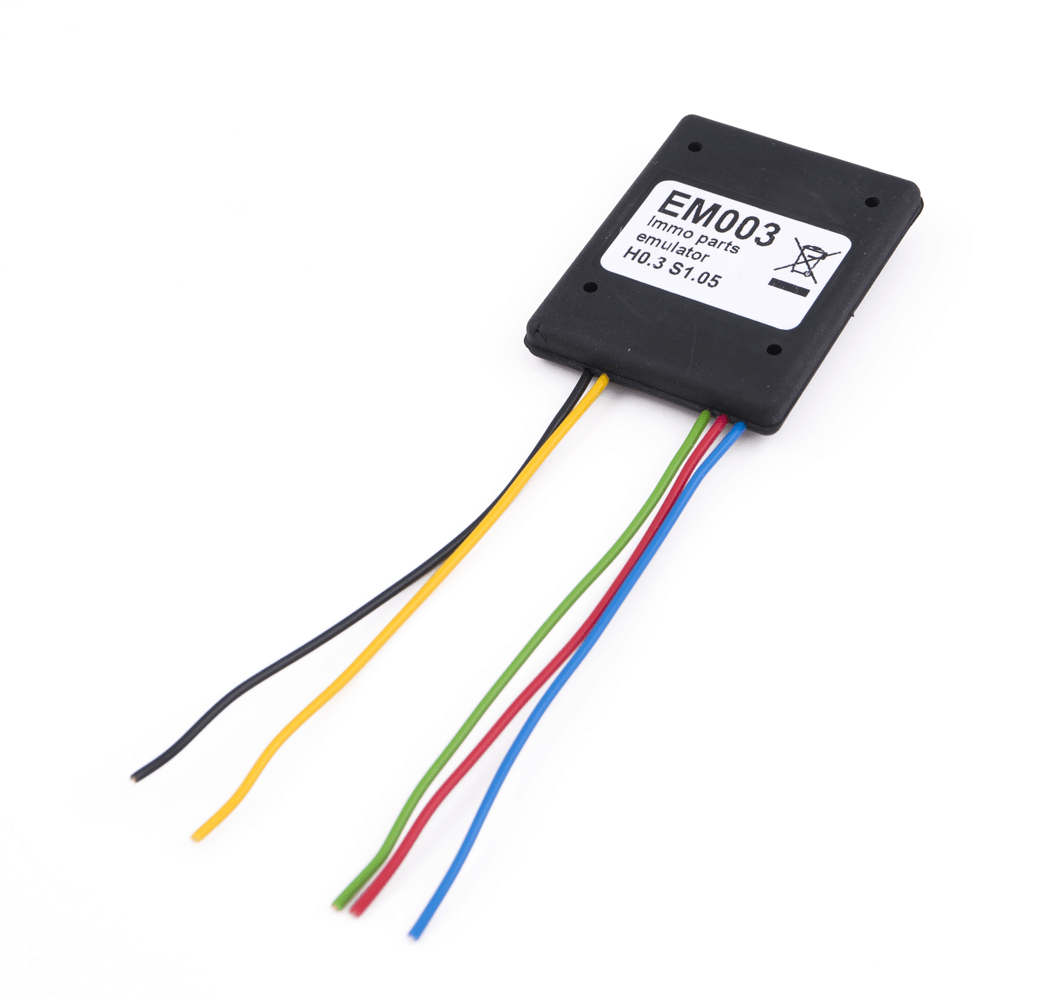

EM003 - Immo Parts Emulator for VAG

The EM003 immo parts emulator is a unique solution which allows the adaptation of Immo 3 /Immo 4 Transmission Control Units (TCU) and Engine Control Units (ECU).

The emulator is the only solution when:

• The PIN and CS of the donor module cannot be read/changed
• The brand of the donor module is different
• The Power Class of the donor module is different

Supported TCUs:

• Audi A6 (2003-2010) TCU
• Audi Q7 (2005-2015) TCU
• Audi A8 (2003-2010) TCU

Supported ECUs:

• Bosch EDC16/EDC17/ME7/MED9/MED17
• Simos benzin/Simos PPD/Simos PCR
• Magneti Marelli
• Delphi

The emulator has to be connected and installed to the internal CAN-BUS of the vehicle.
An AVDI Interface, active AMS and VN002 are required to use this emulator.
