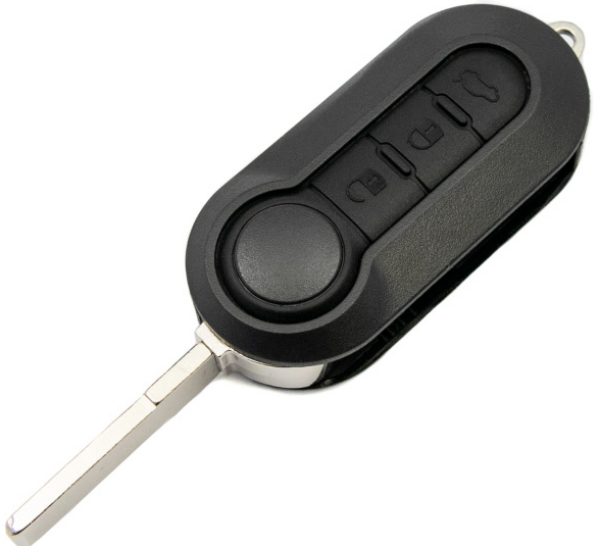

Keyline Aftermarket Fiat 3 Button Flip Remote for Delphi & Marelli systems (FCA002)

Aftermarket Fiat remote with PCF7946A HITAG2 ID46 Transponder. Suitable for various Abarth, Chrysler, Citroen, Dodge, Fiat, Ford, Lancia, Opel-Vauxhall, Peugeot and Iveco vehicles (please see Application List). Comes fitted with a SIP18/SIP22/SIP29 key blade

Note: Has 14 pin PCF7946AT - 10 pin SMD

Note: Mainly used on Delphi BCM


Fiat Marelli/ Delphi Mode Switch Instructions:

1) Press and hold the lock and unlock buttons simultaneously for 5 seconds.
2) a) Release either the lock or the unlock button and press the now-released button 3 times in order to enter Delphi mode (e.g. release the lock button whilst keeping the unlock button pressed. Then, press the lock button 3 times in order to enter Delphi mode).
2) b) Release either the lock or the unlock button and press the now-released button 4 times in order to enter Marelli mode (e.g. release the lock button whilst keeping the unlock button pressed. Then, press the lock button 4 times in order to enter Marelli mode).
3) Release all buttons. To check that the switch was successful, low frequency tools such as the Xhorse VVDI2 (XHH3), Scorpio-LK Tango (TH1) etc. can be used to read the remote's data. The correct unlock patterns for each mode will be outlined in the print-out provided with the remote.

Programming:
Immobiliser: EEPROM/Precode then diagnostically
Remote: Diagnostically
