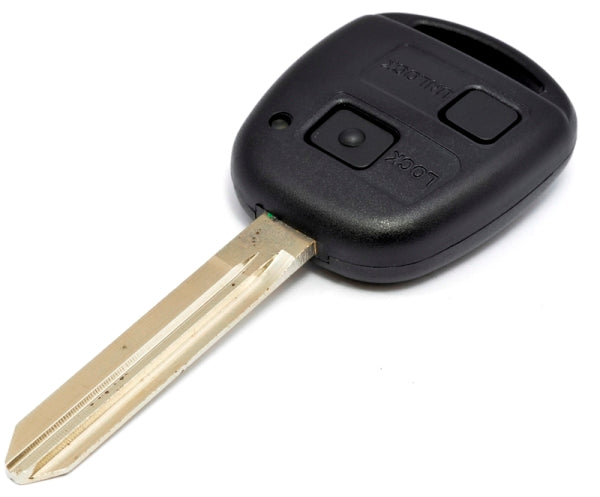

Valeo 4C TOY47 2 Button Avensis/Corolla (OEM Insert/ Aftermarket Case)

This Toyota 2 Button Remote Insert with 4C T4 (TP9) Transponder Chip in an Aftermarket Case. Lock and Unlock Buttons

Frequency: 433Mhz

Writing on Genuine Case: Valeo CE0165 IS-3422-00
Writing on insert: 89071-0D010

Comes fitted with TOY47 key case (TRC6DC)

For key cutting see CUT1
For battery see CR2016
For replacement buttons see EPRB12
To our knowledge this is the latest button for this remote. 3D Group will not be responsible for problems arising from ill fitment

Programming:
Immobiliser: Diagnostically or EEPROM
Remote: Manually

Cross Reference:
3D Group: TR3ac
Genuine Part Number: 890700D02084 (cut) or 890700D03084 (cut) or 890700D020 or 890700D030 (uncut)

Used on Toyota Corolla
Model ZZE120 - Vin 0001001 - 0053748
Model ZZE120 - Vin 0053749 - 2999999
Model ZZE121 - Vin 0001001 - 0064621
Model ZZE121 - Vin 0064622 - 2899999

HELP AVAILABLE:
If you are unsure of the correct part number, you can use our chassis to part number service. Please send through the make, model, full chassis and registration numbers to either our text message service or via the additional notes when checking out
