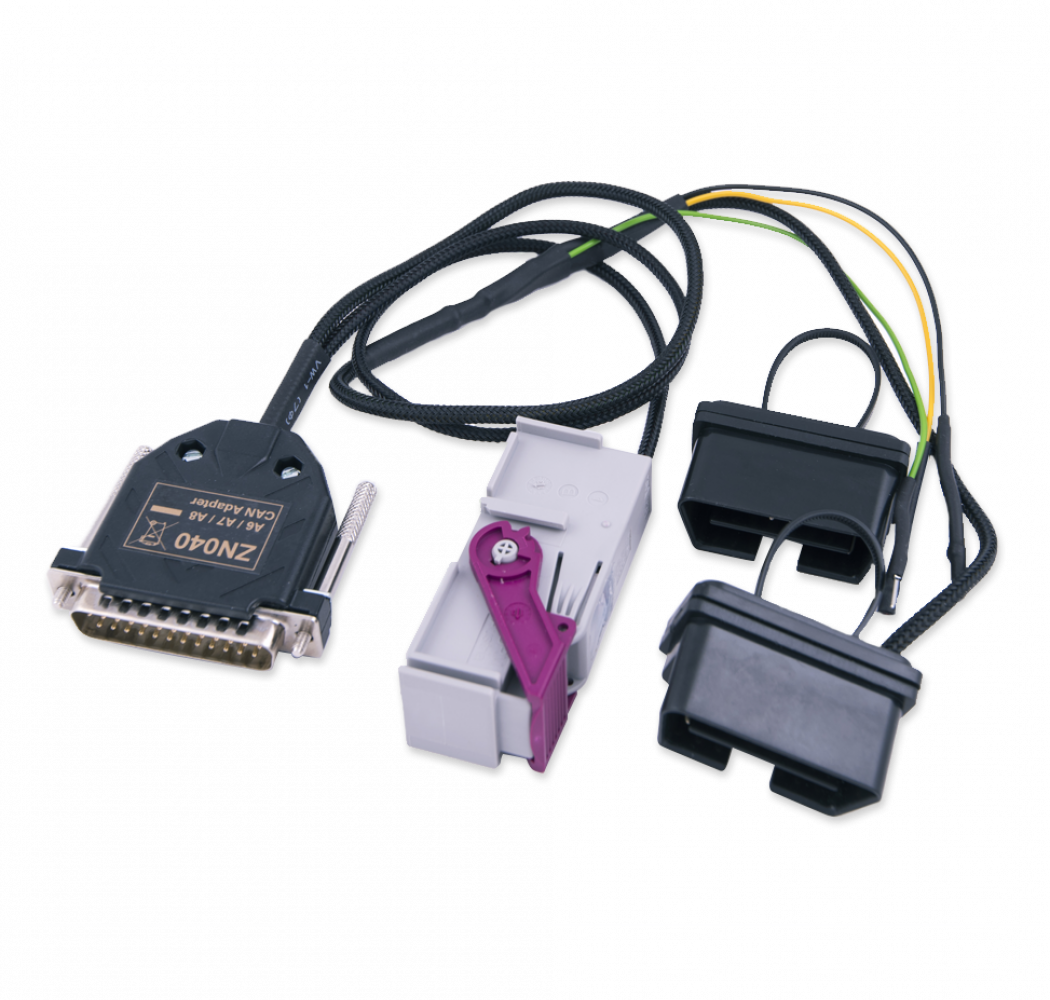

ZN040 - A6/A7/A8 CAN Adapter

The ZN040 adapter is used when performing All Keys Lost procedures for Audi A6/A7/A8 2011+ with BCM2.

The adapter provides all necessary connections:

• CAN separator – used for connection to the internal CAN-BUS of the vehicle for reading the ECU and TCU
• LIN connector (green wire) – used for connection to the internal LIN-BUS of the vehicle for reading the ELV
• OBDII connector – used to force the IGN ON
• B+ connector (yellow wire) – used for connection to B+ when reading the ECU and TCU through the CAN separator
• GND connector (black wire) – used for connection to GND when reading the ECU and TCU through the CAN separator

AVDI with active annual subscription is required.

The warranty period for this hardware product is 1 year from the date of purchase.
This warranty covers defects in materials and workmanship under normal use during the warranty period.
