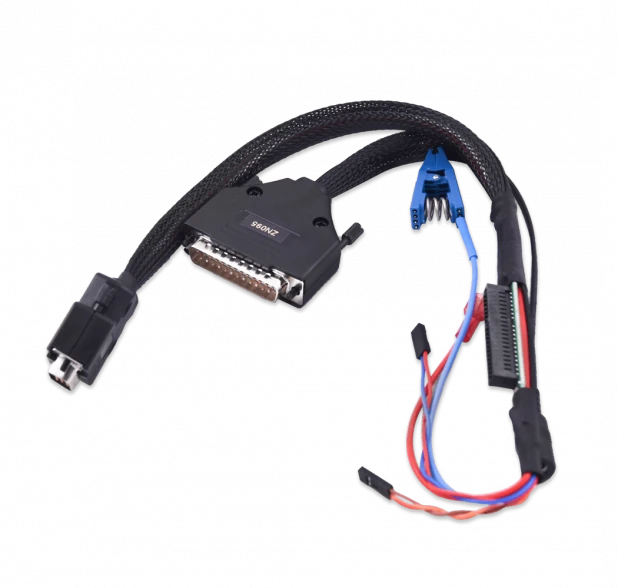

ZN095 - BDC2 Bench Connection Cable for BMW Vehicles

This cable is designed and developed by Abrites for the purposes of the procedure for spare key addition to BMW F-Series and G-Series vehicles, equipped with BDC2 modules.

No soldering required!
Easy and safe connection – only using clips and plugs!
Spare key addition via OBD can be done after first completing the procedure on bench!
Once the procedure is done successfully on bench, adding more keys can be done anytime after that via OBD.

Functionality:

• Establishing connection between AVDI and the BDC2 module via the Abrites Distribution Box Set to add a spare key to the vehicle

(working key required!)

Supported models are the ones supported by the BN020 license:

Any software version of BDC02 installed in

• M5 (F90)
• 5 Series (G30/G31/G38)
• 4 Series (G80/G81/82)
• 6 series (G32)
• 7 Series (G11/G12)
• X3/X4, IX3 (F97/F98, G01/G02, G08)
• M8 (F91/F92/F93)
• 8 Series (G14/G15/G16)

Supported ECUs/software versions:

• swfl_00001df4.106_020_030
• swfl_00005fa8.108_020_020
• swfl_00005fa8.109_051_010
• swfl_00005fa8.109_067_010
• swfl_00001df4.100_062_020
• swfl_00005fa8.108_030_010
• swfl_00005fa8.109_062_010
• swfl_00001df4.100_150_050
• swfl_00005fa8.109_049_041
• swfl_00005fa8.109_063_040
• swfl_00001df4.102_050_040
• swfl_00005fa8.109_050_050
• swfl_00005fa8.109_065_010

Supported years:
Usually BDC02 is installed in most of the above mentioned models up to around 2021, but there are certainly some later cars still using this generation.

Required hardware/software:

• ABRITES Vehicle Diagnostics Interface (AVDI)
• ABRITES Distribution Box Set (ZN151)
• Protag (ZN003)
• Key programming for BMW G-Series and F-Series BDC2 vehicles license (BN020)
• Annual Subscription (AMS)
